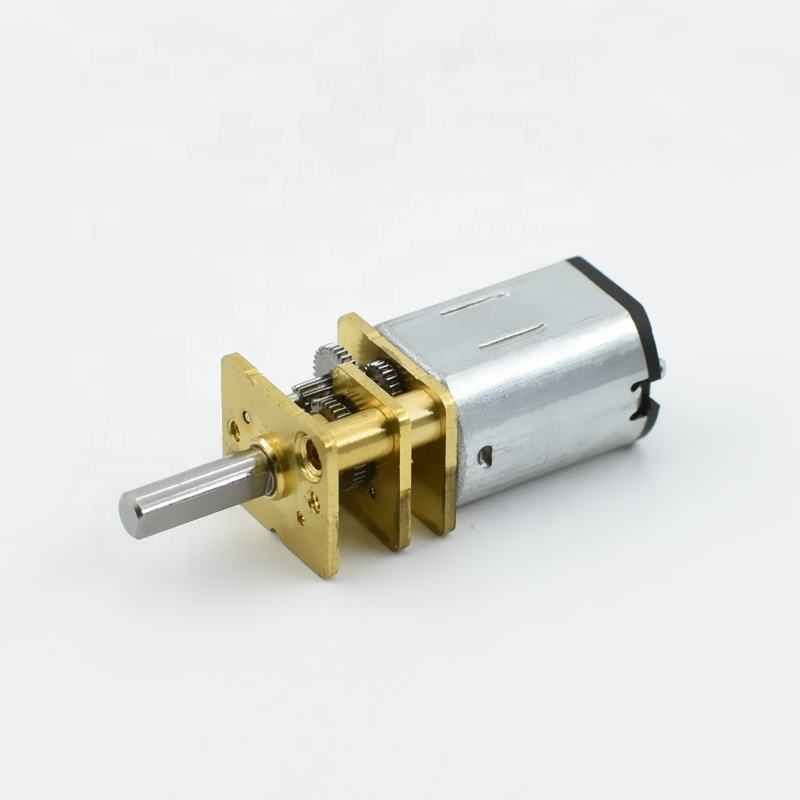

N20 DC Gear Motor for Fingerprint Locks: Micro Drive Precision, Unlocking Smart Security with a Touch

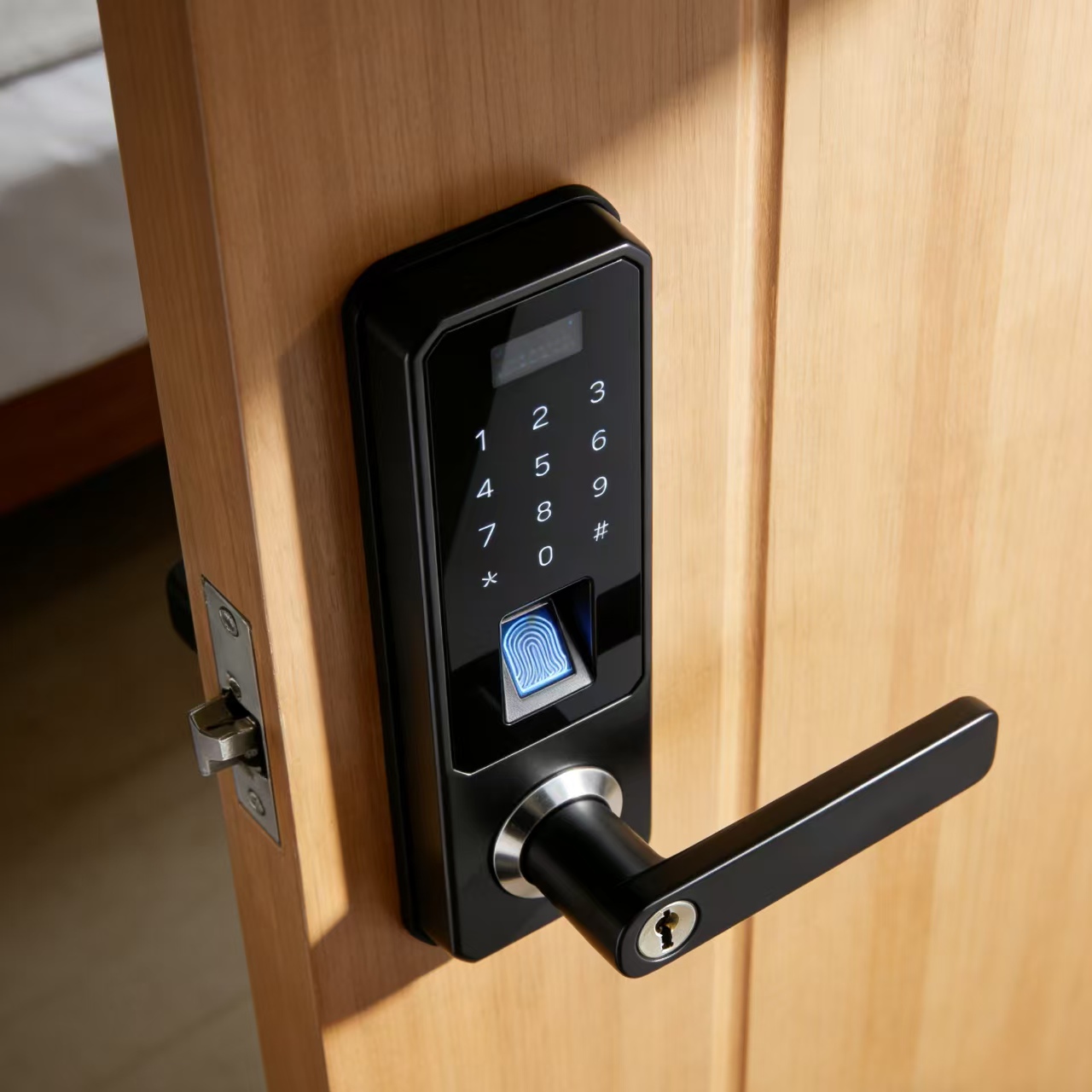

The N20 DC gear motor is a core micro drive component customized for fingerprint locks, integrating an ultra-compact structural design, high-precision micro-gear transmission and low-power energy-saving technology. Powered by a 3V/6V low-voltage lithium battery (matching the power supply system of smart locks), it achieves millimetric-level lock core actuation and stable micro-torque output. It drives the telescoping of the lock tongue, rotation of the deadbolt and engagement of the clutch to complete the core unlocking/locking process after fingerprint verification, meeting the requirements of miniaturization, high security, low power consumption and long standby life for household door locks, office anti-theft locks and smart access control fingerprint lock scenarios.

Working Principle

Fingerprint locks rely on the N20 motor for precise mechanical actuation after identity verification. The motor converts electrical energy into stable low-speed mechanical rotation through its multi-stage micro-precision gear reduction system, driving the lock’s internal clutch and transmission mechanism to realize the conversion from electrical signal to mechanical action. After the fingerprint module identifies a valid fingerprint, the lock’s control board sends a drive signal to the N20 motor, which drives the lock tongue to retract stably at a customized low speed (5-15 RPM) for fast unlocking with a response time ≤0.8s. After locking, the motor reverses to push the lock tongue to extend and lock in place, with built-in position sensing feedback to ensure the lock tongue is fully engaged and avoid half-lock or mislock. Its micro-torque output is precisely matched to the resistance of the lock core, avoiding damage to the lock’s internal structure caused by excessive force while forming a certain anti-pry resistance through the drive mechanism.

Core Advantages

Adaptable to the miniaturized internal space and high-security requirements of fingerprint locks, the N20 motor features outstanding scenario-adaptive performance: ultra-compact size (body diameter ≤20mm) with a slim design, fitting the narrow internal cavity of fingerprint lock panels and lock cores without occupying extra space, matching the lightweight and sleek design of smart locks; high-precision position control (±0.2mm) to ensure accurate telescoping of the lock tongue, avoiding jamming or incomplete locking caused by position deviation; ultra-low power consumption (working current ≤80mA, standby current ≤1μA), minimizing energy consumption during actuation and almost no power loss in standby mode, supporting the fingerprint lock to work continuously for 1-2 years with a single set of batteries; ultra-low noise operation (≤28dB) via precision gear meshing and silent lubrication, realizing quiet unlocking/locking without disturbing family rest or the office environment; stable micro-torque output (0.3-1.5N·m), which can be customized to match different types of fingerprint lock cores, ensuring smooth actuation while having a certain anti-pry resistance; wide temperature adaptation (-20℃ to 60℃), with low-temperature resistant windings and special lubricants, working stably in cold winter and hot summer without performance degradation; IP54 dustproof and splashproof design, preventing dust and daily water splashes from entering the motor, adapting to the semi-outdoor working environment of door locks; high wear resistance with precision-engineered plastic gears and reinforced rotor shafts, withstanding tens of thousands of unlocking/locking cycles and matching the long service life of fingerprint locks.

About Tyhe Motor

Tyhe Motor provides smart lock-grade N20 series micro DC gear motors and customized drive solutions for fingerprint locks. We tailor key parameters such as torque output, rotational speed, installation dimensions and power consumption according to the design requirements of household, office and commercial access control fingerprint locks, fully complying with the electrical safety and structural design standards of smart lock products. Our micro-precision drive systems ensure the fast, smooth and safe operation of fingerprint locks, effectively improving the user experience and security performance of smart lock products, and helping smart lock manufacturers enhance their market competitiveness in the intelligent security industry.
