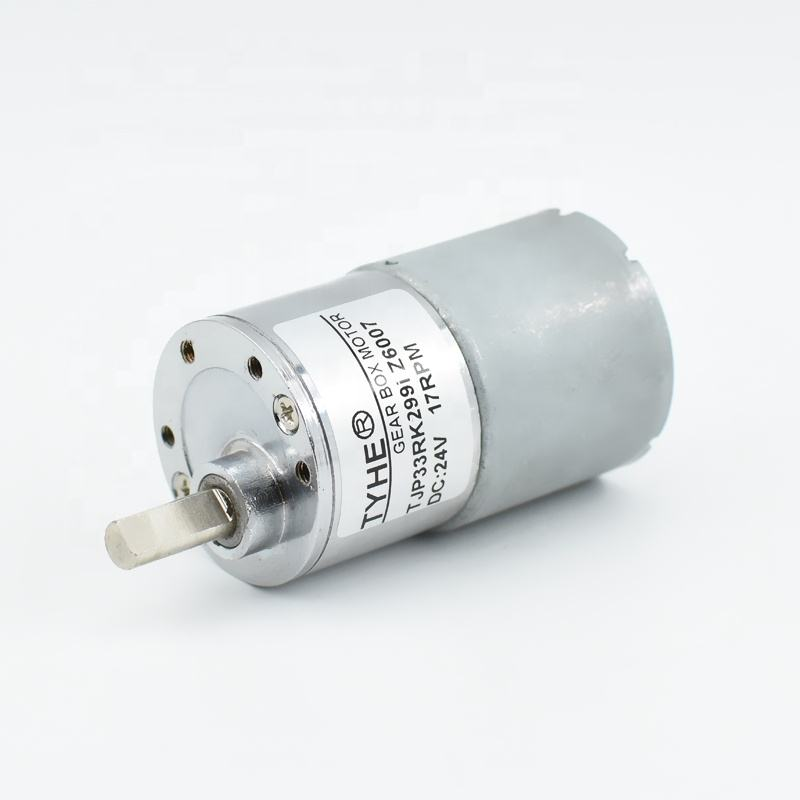

TJP33RK DC Gear Motor for Paper Feeders: Micro Drive Precision, Feeding Smoothness in Every Sheet

The TJP33RK DC gear motor is a customized core drive component tailored for paper feeders, integrating miniaturized high-precision structural design, wear-resistant micro-gear transmission and low-noise torque output technology. Powered by 5V/12V low-voltage power supplies (compatible with office equipment power standards), it achieves stepless speed regulation and stable micro-torque drive, supporting core paper feeder functions such as single-sheet precise feeding, multi-layer paper separation, continuous automatic conveying and jam-free paper feeding for printers, copiers, scanners and office all-in-ones, meeting the requirements of high feeding accuracy, low noise, long service life and stable operation for office, home office and commercial document processing scenarios.

Working Principle

Paper feeders rely on the TJP33RK motor for the core power of precise paper conveying and separation. The motor converts electrical energy into uniform low-speed mechanical rotation via its optimized multi-stage micro-gear reduction system, driving the paper feed roller, separation roller and pickup roller to rotate at a synchronized customized speed (10-30 RPM). It cooperates with the paper feeder’s friction separation structure to realize single-sheet precise feeding—the motor’s stable torque output ensures the roller applies uniform pressure to the paper stack, avoiding multi-sheet feeding caused by excessive torque or paper feeding failure due to insufficient torque. For continuous document processing, the motor coordinates with the equipment’s paper detection sensor, responding to control signals in real time to adjust rotation speed and stop instantly when paper jams are detected, preventing secondary damage to the paper or equipment. Its precise speed matching design also ensures the paper is conveyed to the printing/scanning position with millimeter-level accuracy, avoiding printing offset or scanning blurring caused by paper feeding deviation.

Core Advantages

Adaptable to the high-precision and high-frequency working requirements of paper feeders in office equipment, the TJP33RK motor has outstanding scenario-adaptive performance: ultra-high feeding accuracy (±0.3mm) to ensure precise positioning of paper conveying, eliminating printing offset and scanning blurring, improving document processing quality; ultra-low operating noise (≤25dB) via precision gear meshing, silent lubrication and shock-absorbing structural design, realizing quiet paper feeding without disturbing office and home office environments; stable micro-torque output (0.2-1.0N·m), customizable matching to different paper types (A4/A3, plain paper/photo paper/thick cardboard) and paper stack heights, ensuring smooth feeding of various papers without jamming or multi-sheet feeding; miniaturized compact design (body diameter ≤33mm) with slim installation structure, fitting the narrow internal space of office all-in-ones and portable printers, without increasing the overall volume of the equipment; ultra-low power consumption (working current ≤60mA, standby current ≤0.5mA), meeting the energy-saving requirements of office equipment, reducing long-term operation power consumption; high wear resistance with high-strength engineering plastic gears and anti-slip roller drive shafts, resisting abrasion caused by high-frequency paper friction, with a long service life (≥200,000 paper feeding cycles); wide voltage adaptation (5V/12V) and standard interface design, compatible with most mainstream printers, copiers and scanners, with strong interchangeability and easy installation and replacement; built-in overload and locked-rotor protection, instantly cutting off power when paper jams cause motor locking, preventing motor burnout and extending the service life of the paper feeder and the whole machine.

About Tyhe Motor

Tyhe Motor provides office equipment-grade TJP33RK series micro DC gear motors and customized drive solutions for paper feeders. We tailor key parameters such as torque output, rotation speed, installation dimensions and voltage adaptation according to the design requirements of portable printers, commercial copiers, high-speed scanners and office all-in-ones, fully complying with the electrical safety and structural design standards of office equipment. Our high-precision, low-noise drive systems ensure the smooth, precise and jam-free operation of paper feeders, effectively improving the work efficiency of document processing equipment, reducing office noise pollution, and helping office equipment manufacturers enhance product competitiveness in the smart office industry.
