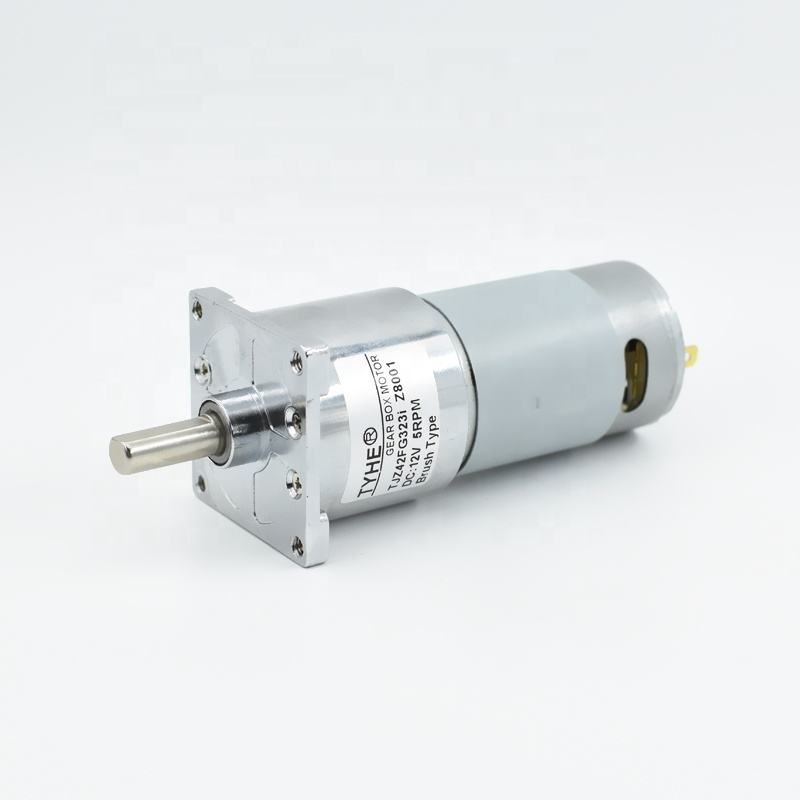

DC Gear Motors (TJZ42FG) for Electric Grills: Steady Rotation, Perfecting Uniform Grilling Delights

The TJZ42FG DC gear motor is a core customized drive component tailored for electric grills, integrating high-temperature resistant structural design, wear-resistant precision gear transmission and anti-oil sealing technology. Powered by 12V/24V DC power supplies (via AC-DC converters for household/outdoor/commercial use), it achieves stable speed control and adjustable torque output, supporting key grilling processes such as uniform rotisserie rotation, grill surface angle adjustment and automatic heat source distribution while meeting the harsh working conditions (high temperature, oil splashes, frequent load changes) and long-service-life requirements of home cooking, outdoor camping and commercial catering scenarios.

Working Principle

Electric grills rely on the TJZ42FG motor for core grilling drive. The motor converts electrical energy into mechanical energy, driving the rotisserie rod to rotate at a steady speed (5-20 RPM) via multi-stage precision gear transmission—ensuring even heat penetration on ingredients like whole chickens, ribs and sausages to avoid local overcooking or undercooking. For adjustable-angle grills, the motor provides stable torque to tilt the grill surface (0-30°) for oil drainage or targeted heating. Its optimized gear ratio and speed feedback system adapt to different ingredient weights (0.5-5kg) and grilling modes (low-temperature smoking, high-temperature searing), maintaining consistent rotation even when encountering resistance (such as uneven ingredient distribution or minor jamming).

Core Advantages

Adaptable to the high-temperature and oil-rich environment of electric grills, the TJZ42FG boasts outstanding performance: high-temperature resistance (up to 120℃ ambient temperature) with heat-insulated casing and high-temperature resistant lubricants, enduring grill cavity heat radiation; anti-oil and dust-proof sealed design (IPX5 rating), preventing oil splashes, food residues and dust from entering the motor interior; stable torque output (≥8N·m) to drive heavy ingredients and maintain uniform rotation without stalling; stepless speed regulation (5-20 RPM) to match different grilling needs—slow speed for tenderizing large meats, moderate speed for quick searing small ingredients; low operating noise (≤40dB) via optimized gear meshing and damping structure, fitting outdoor camping and home dining environments; customizable installation dimensions and output shaft types to match various electric grill models (tabletop rotisserie grills, outdoor portable grills, commercial multi-layer grills); built-in overload, overheat and locked-rotor protection to prevent motor damage from ingredient jamming or long-term high-load operation; and wear-resistant alloy gears for long service life (≥6000 working hours), adapting to frequent grilling use.

About Tyhe Motor

Tyhe Motor provides industrial-grade TJZ42FG series motors and customized solutions for electric grills. We tailor key parameters such as rotational speed, torque, installation structure and protection level according to the specific requirements of household, outdoor and commercial electric grills, fully complying with international electrical safety standards (IEC/UL) and high-temperature resistance requirements. Our drive systems deliver stable, reliable and efficient performance, effectively enhancing the grilling uniformity, operational convenience and service life of electric grills, and helping products stand out in the catering appliance market.
