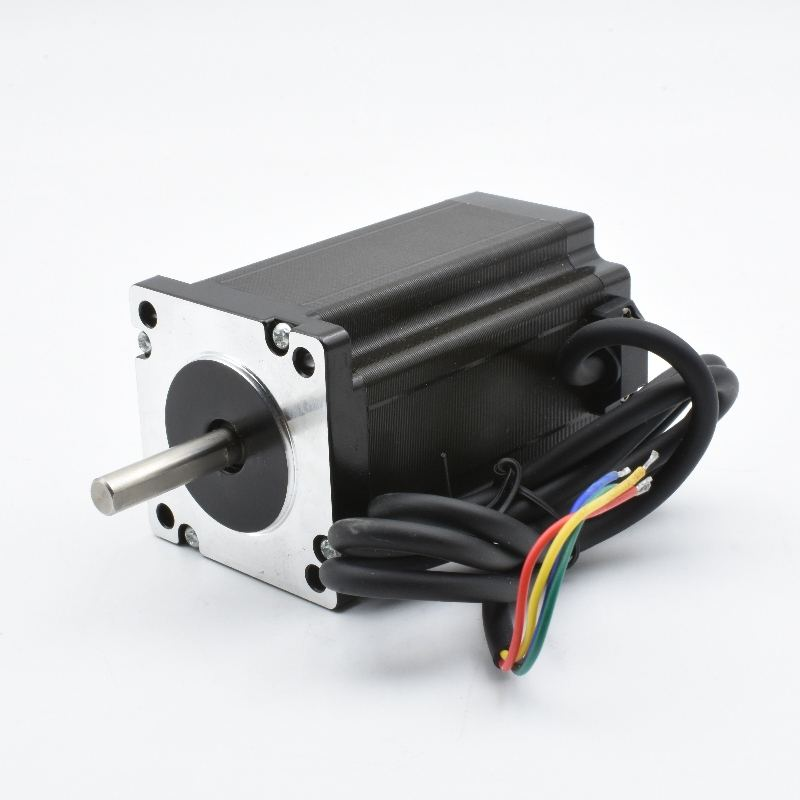

NEMA24 Stepper Motor for Automotive Brake Systems: High-Torque Precision, Guarding Every Drive

The NEMA24 stepper motor is a heavy-duty core drive component tailored for automotive brake systems, integrating high-torque stepping technology, rugged anti-vibration structural design and automotive-grade environmental adaptation engineering. Powered by the vehicle’s 12V/24V DC power system (fully compliant with automotive electrical standards), it achieves micron-level position control and stable high-torque output, supporting key brake functions such as electronic parking brake (EPB) heavy-load actuation, large-caliber brake caliper control, brake clearance automatic compensation and regenerative brake coordination while meeting the safety-critical requirements (functional safety, anti-failure), harsh operating conditions (extreme temperatures, intense vibration, dust and fluid erosion) and long service life demands of commercial vehicles, heavy-duty passenger cars and new energy trucks.

Working Principle

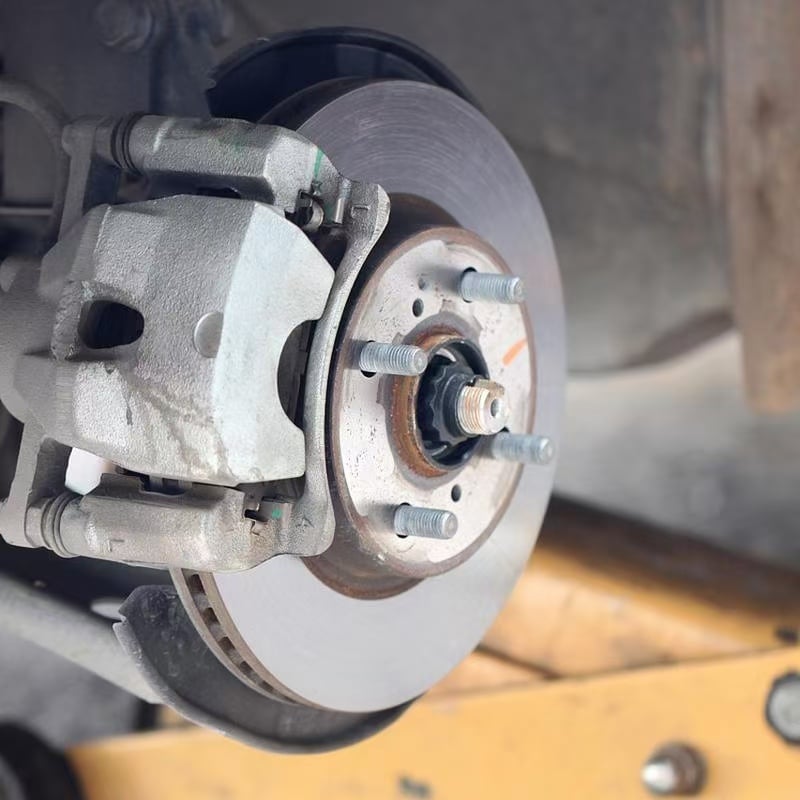

Automotive brake systems rely on the NEMA24 stepper motor for high-precision, high-load actuation. The motor converts electrical pulse signals into accurate angular displacement via its inherent step-by-step drive characteristic (typical step angle 1.8°, optional 0.9° for ultra-precision), driving the brake caliper piston, EPB cable winding mechanism or hydraulic valve group through reinforced precision gear transmission. For heavy-duty vehicle EPB systems, it delivers sufficient torque to clamp large-diameter brake discs, ensuring reliable parking even under full-load conditions (≥5t). In brake clearance compensation, it dynamically adjusts piston stroke based on wear detection signals, maintaining optimal brake gap (0.1-0.3mm) to avoid drag or insufficient braking force. It also synchronizes with ABS/ESC/regenerative braking systems, responding within 8ms to adjust torque, realizing smooth switching between mechanical and regenerative braking in heavy new energy vehicles.

Core Advantages

Adaptable to safety-critical and high-load automotive brake scenarios, the NEMA24 stepper motor boasts outstanding performance: ultra-high positioning accuracy (±0.008mm) for precise control of brake clearance and parking force; enhanced holding torque (2.0-5.0N·m) to meet heavy-duty braking load requirements; wide operating temperature range (-40℃ to 125℃) with automotive-grade high-temperature windings and lubricants, resisting extreme weather and braking heat; anti-vibration and impact resistance (compliant with ISO 16750-3 vibration standards) to withstand road shocks and brake recoil; low power consumption (standby current ≤8mA) for automotive energy-saving needs; dual-signal redundancy + hardware fault detection design, complying with ISO 26262 functional safety standards (ASIL C/D); IP67 waterproof and dustproof rating, resisting road dust, rainwater and brake fluid corrosion; long service life (≥120,000 working cycles) with wear-resistant alloy rotor and sealed bearings, matching vehicle service life (≥200,000km); and compatibility with CAN/LIN automotive buses for seamless integration with ECU.

About Tyhe Motor

Tyhe Motor provides automotive-grade NEMA24 stepper motors and functional safety solutions for automotive brake systems. We tailor step angle, holding torque, installation dimensions and signal interfaces according to the requirements of heavy-duty EPB, electronic hydraulic brakes (EHB) and commercial vehicle regenerative brake systems, fully complying with ISO 16750, IEC 60664 and other automotive industry standards. Our high-torque, precision drive systems enhance braking stability, load capacity and safety redundancy of automotive brake systems, helping vehicle manufacturers meet strict commercial vehicle safety regulations and improve product competitiveness.
