TJW83FN

DC Worm Gear Motor直流蜗轮蜗杆电机																20 Nm		40 Watts
4566ZY Micro brushed dc motor with worm gearbox																For combination with
																Encoder & Brake
																可搭配编码器及刹车
TJW83FN Series

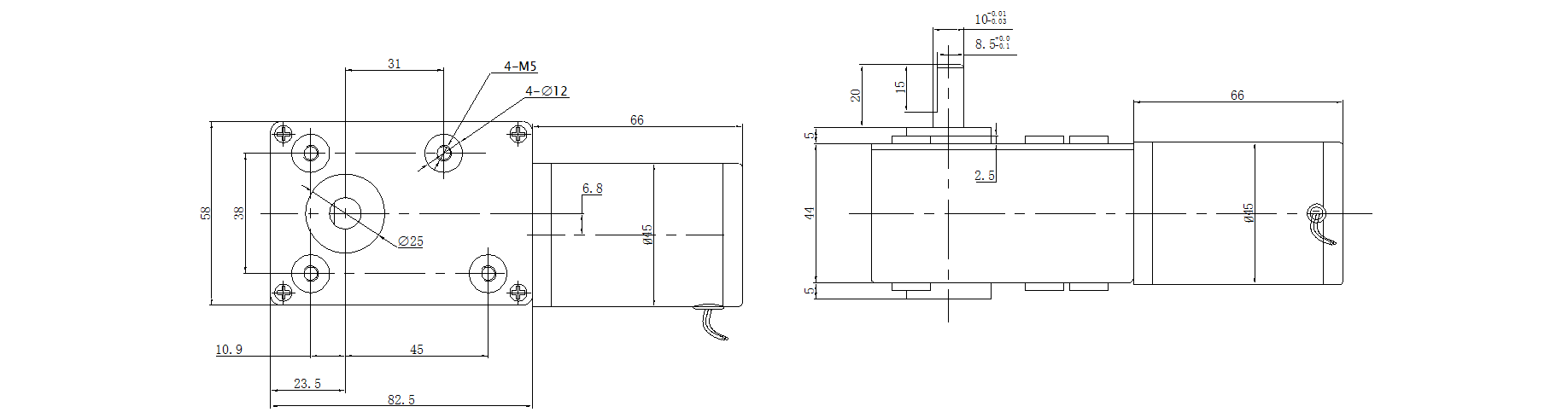

Dimensional drawing 外形尺寸图(mm)

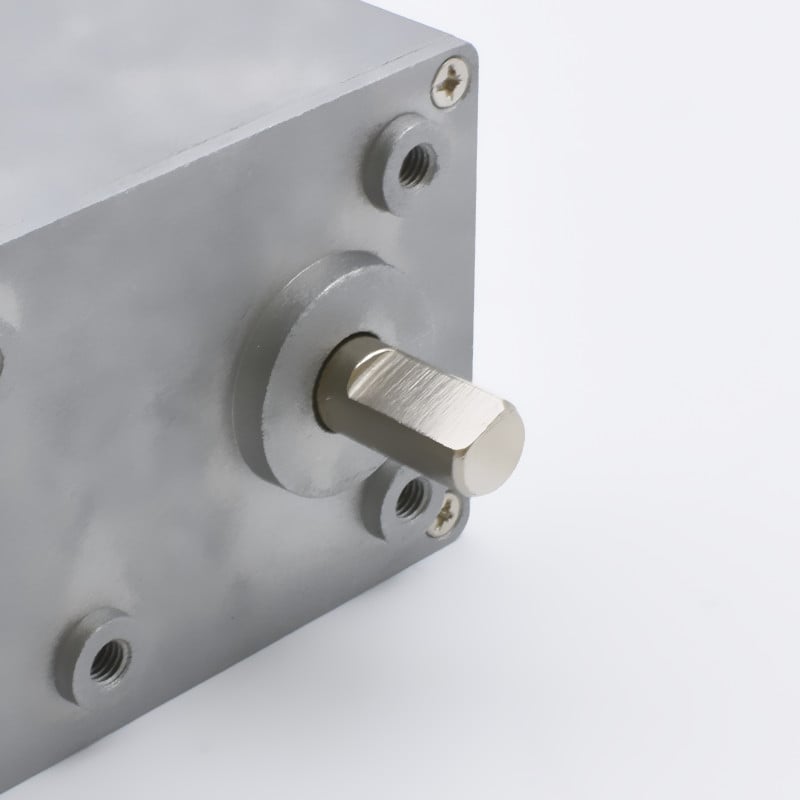

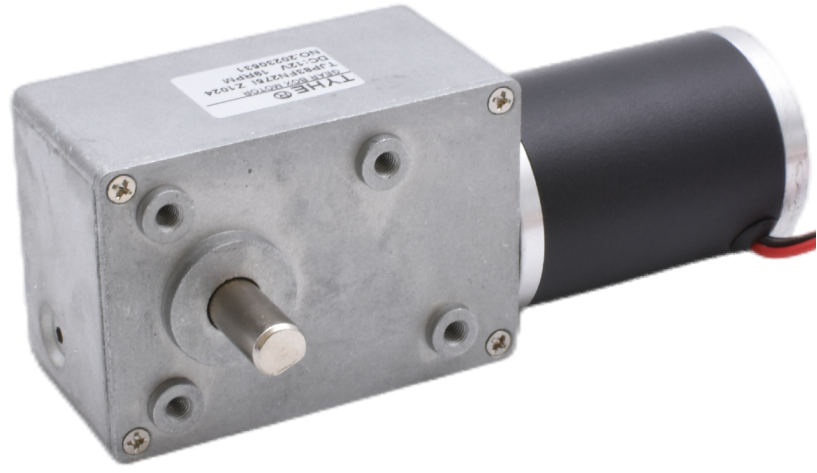

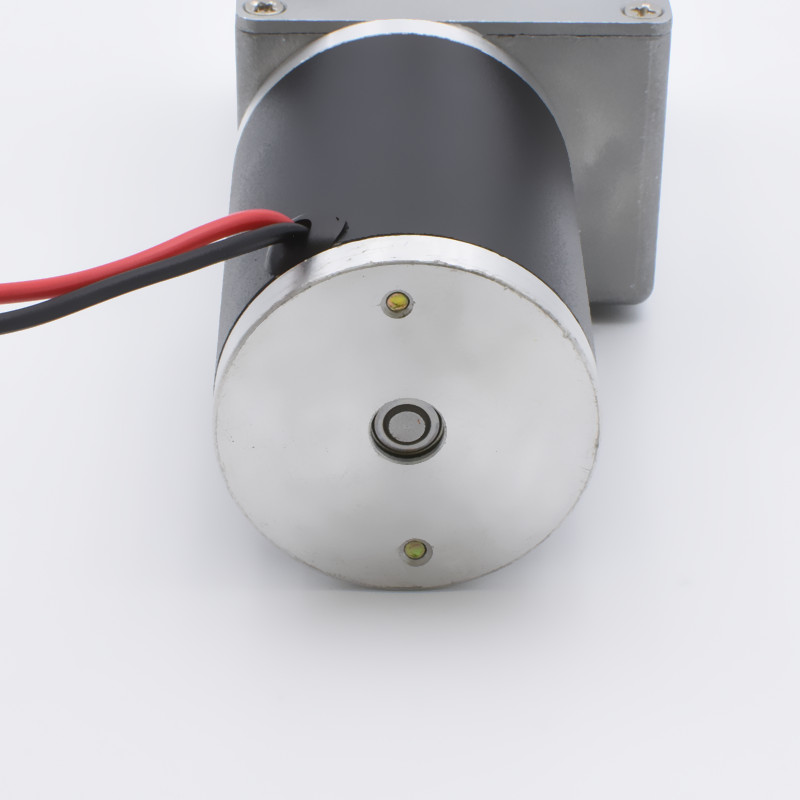

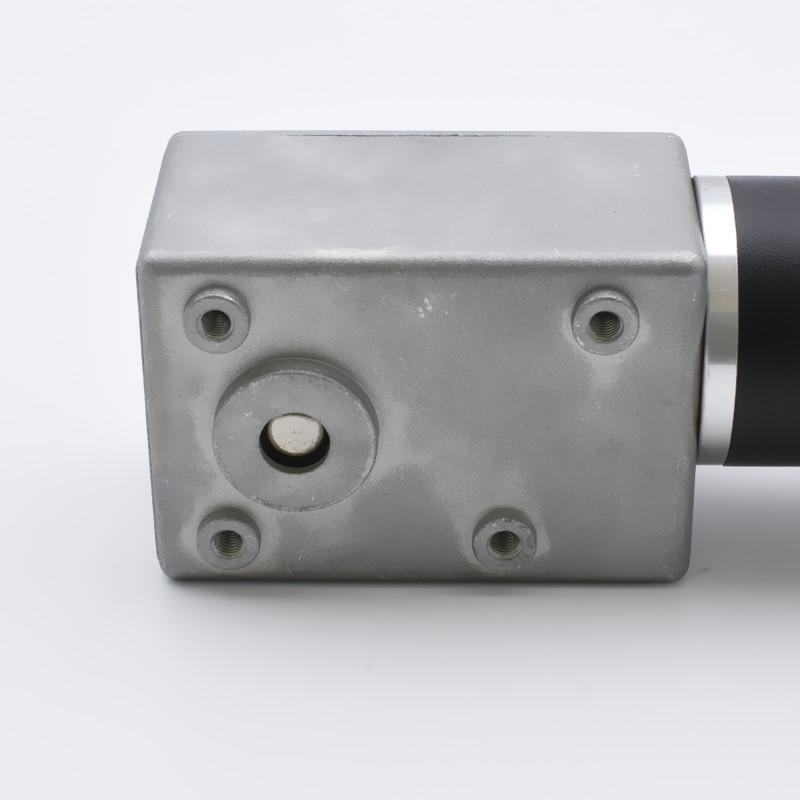

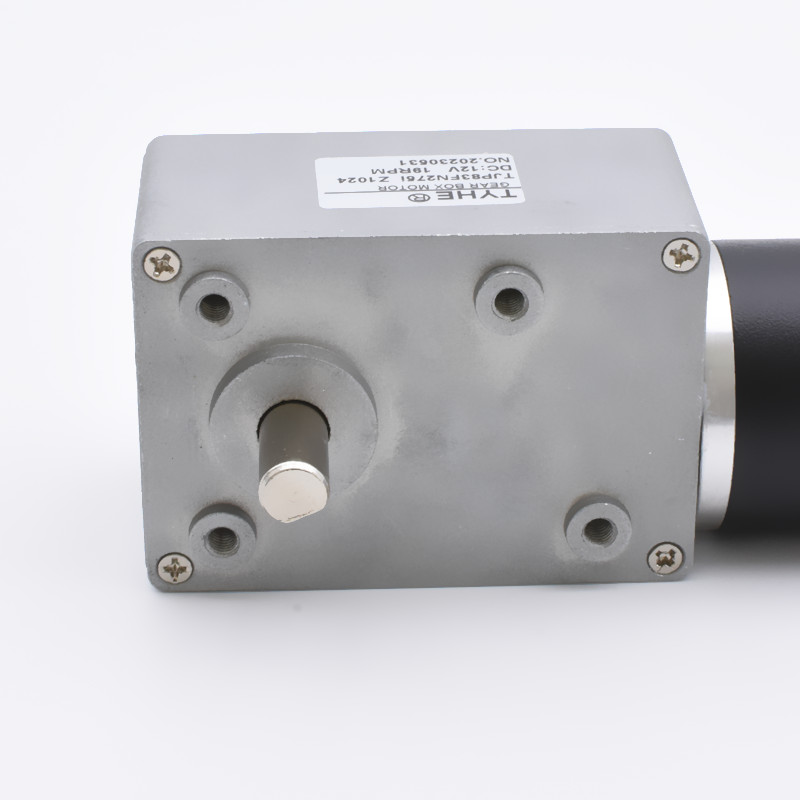

Picture of motor 电机实物图
Motor characteristics 电机特性
Housing material 安装面材质															Zinc alloy 锌合金
Gear chain material 齿轮材质															40Cr 合金钢
Back lash 齿轮背隙															≤2°
Bearings on output shaft 输出轴轴承															Ball bearing 滚珠轴承
Recommended max input speed 建议最大输入转速															≤8000RPM
Radial force 径向力															≤5kgf
Axial force 轴向力															≤10kgf
Maximum pressure force on shaft 主轴最大承受压入力															≤20kgf
Radial clearance 径向间隙															≤0.1mm
Axial clearance 轴向间隙															≤0.3mm
Operating temperature range 使用温度范围															-20℃-120℃
Commutator 换向结构															Brushed
Direction of rotation 旋转方向															CW / CCW
Noise 噪音															≤65dB
DC Motor Technical Data 直流电机参数
Values at 25-30℃ 室温下测量数值
Model 型号	Rated Voltage（V） 额定电压	No-Load 空载参数		Rated 额定参数					Stall 堵转参数		*Tips: The datasheet on left side are limited, please consult our staffs for more parameter information. 提示：左边的数据表参数有限，请联系客服获取更多参数信息。
		Speed 转速	Current 电流	Speed 转速	Current 电流	Torque 力矩	Output 输出功	Eff 效率	Torque 力矩	Current 电流
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
4566ZY	12	5000	610	4000	2.19	41.53	17.39	66.32	124.59	15.25
4566ZY	24	6000	385	4800	1.30	41.00	20.61	65.96	123.00	8.69
Motor With Gearbox Technical Data 减速电机参数
Gearbox data 减速箱参数
Gear ratio 减速比 n : 1			15.9	82.5	111.7	165	223.4	275	372	550	745
Number of gear stages 减速级数			3	3	3	3	3	4	4	4	4
Gearbox size 齿轮箱尺寸(mm)			83*58	83*58	83*58	83*58	83*58	83*58	83*58	83*58	83*58
Efficiency 效率(%)			0.61	0.61	0.61	0.61	0.61	0.52	0.52	0.52	0.52
4566ZY-12V-5000R
No-load speed 空载转速(RPM)			314.5	60.6	44.8	30.3	22.4	18.2	13.4	9.1	6.7
Rated speed 额定转速(RPM)			251.6	48.5	35.8	24.2	17.9	14.5	10.8	7.3	5.4
Rated torque 额定扭矩(N.M)			0.406	2.104	2.849	4.208	5.698	5.962	8.065	11.923	16.151
Rated torque 额定扭矩(KG.CM)			3.97	20.62	27.92	41.24	55.84	58.42	79.03	116.85	158.28
Rated torque 额定扭矩(LB.IN)			4.58	23.76	32.17	47.51	64.33	67.31	91.06	134.63	182.36
4566ZY-24V-6000R
No-load speed 空载转速(RPM)			377.4	72.7	53.7	36.4	26.9	21.8	16.1	10.9	8.1
Rated speed 额定转速(RPM)			301.9	58.2	43.0	29.1	21.5	17.5	12.9	8.7	6.4
Rated torque 额定扭矩(N.M)			0.400	2.077	2.813	4.155	5.625	5.886	7.962	11.771	15.945
Rated torque 额定扭矩(KG.CM)			3.92	20.36	27.56	40.71	55.13	57.68	78.02	115.36	156.26
Rated torque 额定扭矩(LB.IN)			4.52	23.45	31.76	46.91	63.51	66.45	89.89	132.91	180.03

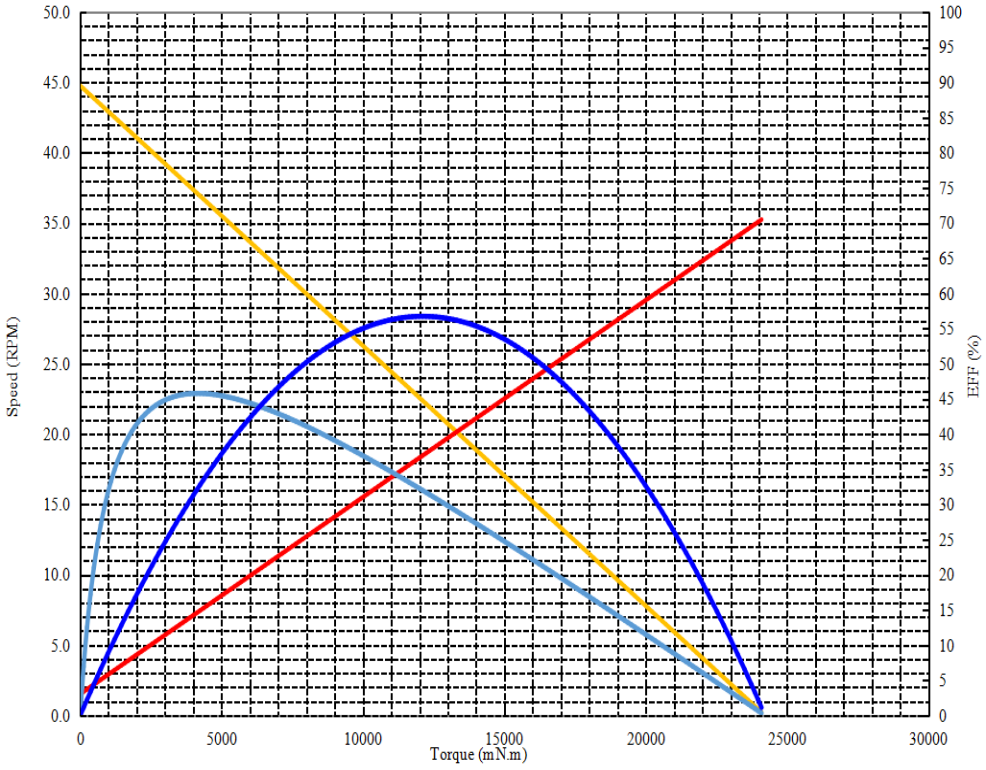

Gear motor curve case 减速电机曲线示例
Project 工程名:			DC GEAR MOTOR			Date 日期:			2025/3/26			Performance (in an ambient temperature of 25-30℃)
Motor speed转速:			5000RPM		Full scale 量程:				100%		Eff	Rapidly test to prevent temperature rise and overload damage.
Gear chain 级数:			3						50.0		Watts	Constant voltage 恒压加载:					12		Volts
Gear ratio 减速比:			111.7						20.0		Amp.	Direction 方向:					CW/CCW
												At no-load 空载参数
															Speed 转速:			44.8		RPM
															Current电流:			0.61		AMPS
												Max instantaneous parameters 最大瞬时参数
															Torque 扭矩 :			23678.62		mN-m
															Current 电流:			14.17		AMPS
												At maximum efficiency 最高效率点参数
															Efficiency 效率 :			45.8		%
															Torque 扭矩 :			4160.7		mN-m
															Speed 转速 :			37.1		RPM
															Current 电流:			2.94		AMPS
															Output 输出功率:			16.15		Watts
												At maximum power output 最大功率输出参数
															Output 输出功率 :			28.369		Watts
															Torque 扭矩 :			12105.8		mN-m
															Speed 转速 :			22.4		RPM
															Current 电流 :			7.39		AMPS
Production Combination 其他配件
Accessories 名称					Voltage 电压			Resolution 分辨率					Channels 通道数						Remark
Magnetic Encoder 磁性编码器					5V-24V			13ppr					A&B
φ45-Brake 刹车					12V-24V			/					/
Optical encoder 光电编码器					5V-24V			100ppr, 200ppr, 256ppr, 360ppr, 400ppr, 512ppr, 1000ppr					A&B

Large Industrial Worm Gear Motor | TJW83FN | High Power & Heavy Load Capacity

Features

1. 83mm center distance, cast iron housing for heavy industrial use

2. Output torque range: 1–10Nm, reduction ratio 7.5:1 to 100:1

3. High radial load capacity with heavy-duty output bearings

4. Self-locking on all ratios ≥30:1, partial self-locking on lower ratios

Description

TJW83FN is a large worm gear motor with 83mm center distance, designed for heavy industrial applications requiring high torque and reliable operation. The cast iron gear housing provides excellent rigidity and vibration damping. The worm is made of case-hardened 20CrMnTi steel, ground to precision, and the worm wheel is made of centrifugal cast ZCuSn10Pb1 bronze for superior wear resistance. Output torque ranges from 1Nm to 10Nm depending on reduction ratio. Reduction ratios from 7.5:1 to 100:1 are available. The large output shaft is supported by heavy-duty taper roller bearings for high radial and axial load capacity. We provide optional motors including brushless DC motors, and hydraulic motors for special applications.

Wide range of configurations:

Center distance 83mm, reduction ratio 7.5–100:1, output torque 1–10Nm, input power up to 15W, multiple input flange options.

Applications

- Industrial overhead cranes

- Large automatic gates (industrial)

- Conveyor systems for bulk materials

- Mixers and agitators

- Winches and hoists

- Parking elevator systems

Advantages of TJW83FN Worm Gear Motor

1. High torque capacity: Up to 10Nm for heavy industrial loads.

2. Robust construction: Cast iron housing and heavy-duty bearings.

3. High reliability: Premium materials for long service life.

4. Versatile mounting: Foot mount, flange mount, and shaft mount options.
