TJX22RD

Dc Planetaria Apparatus Motor directus motor planetarius																2 Nm		2 Watti
RF280 Micro pensilis motor cum dentato reductione																Ad combinationem cum
																Hall sensor encoder
																possibilitate conjunctionis cum magnetic encoder
TJX22RD Series
Delineatio Dimensionalis figūra dīmēnsiōnis (mm)

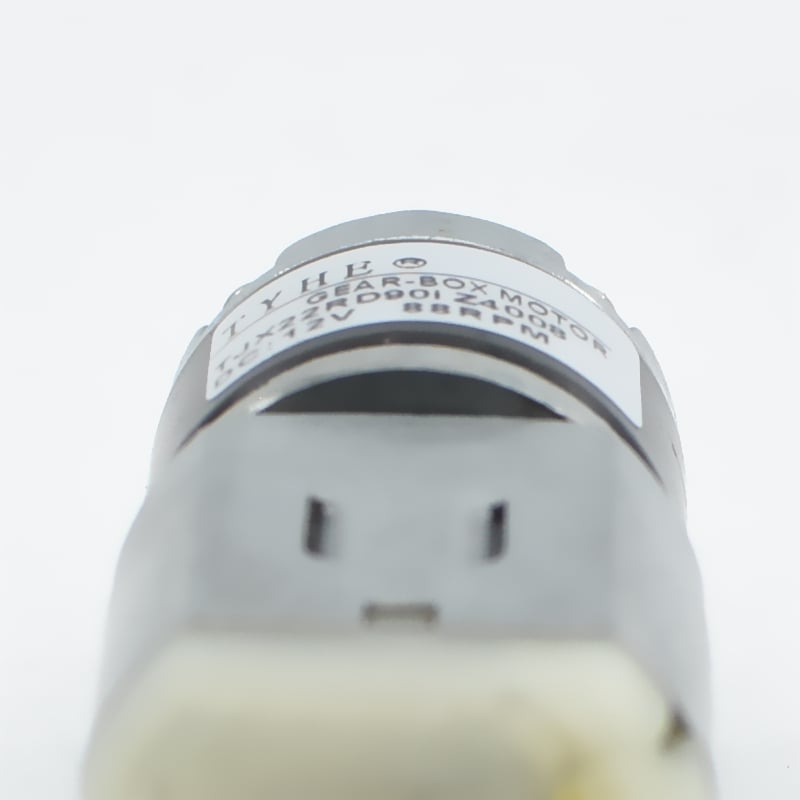

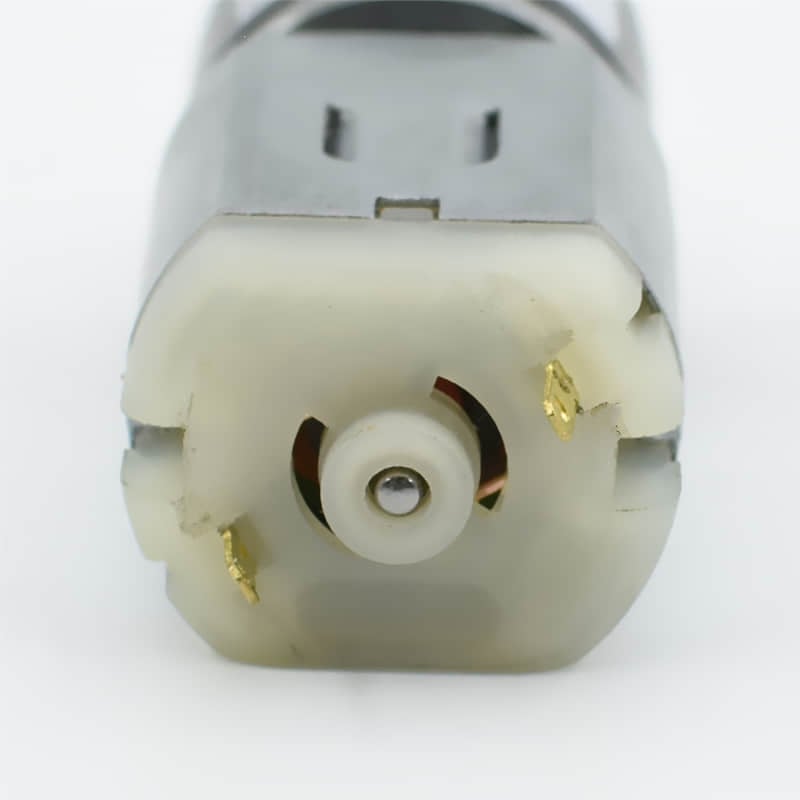

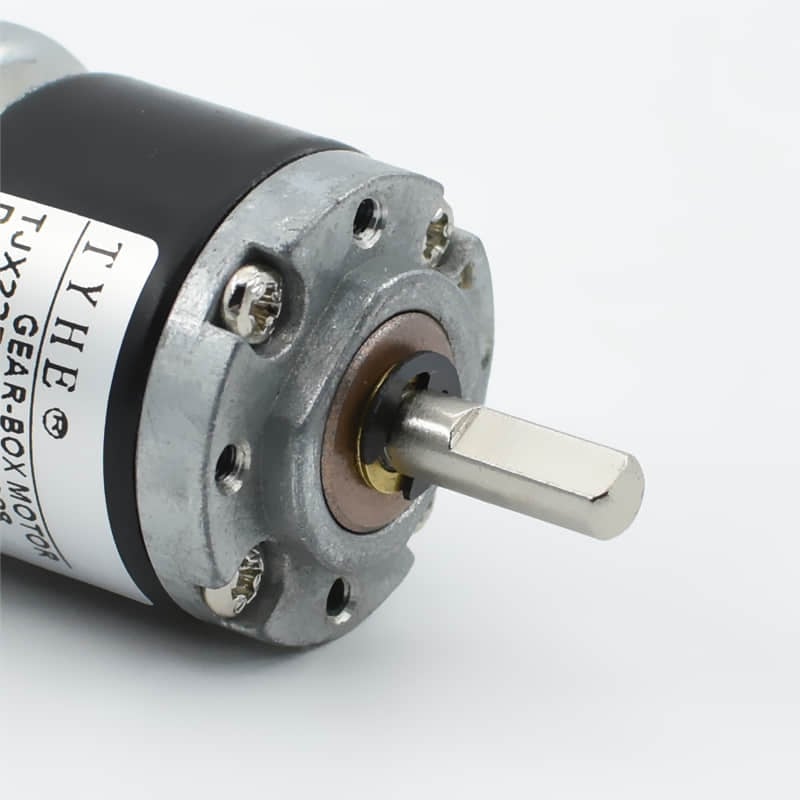

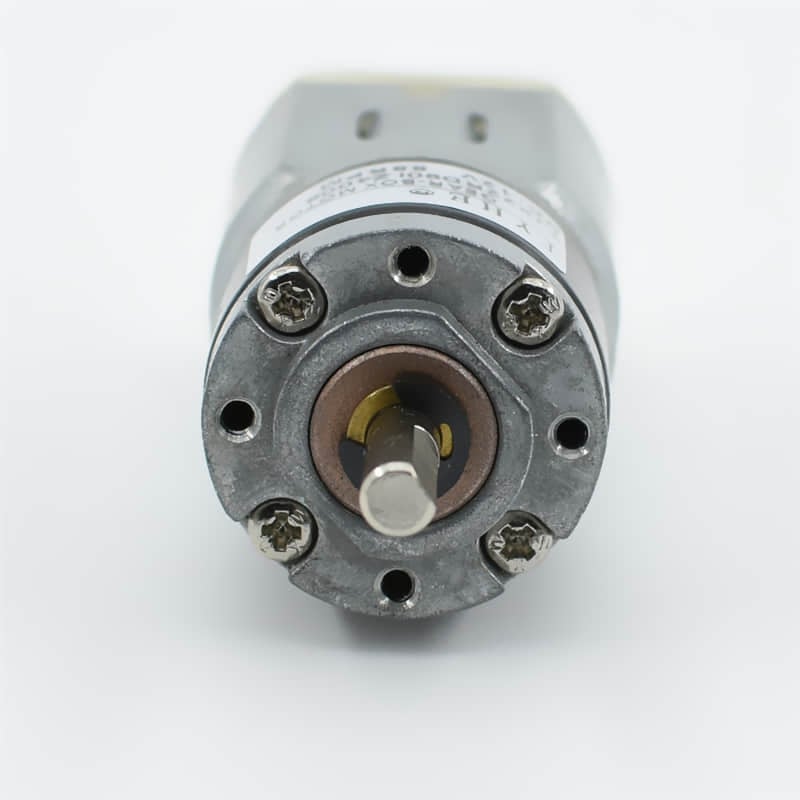

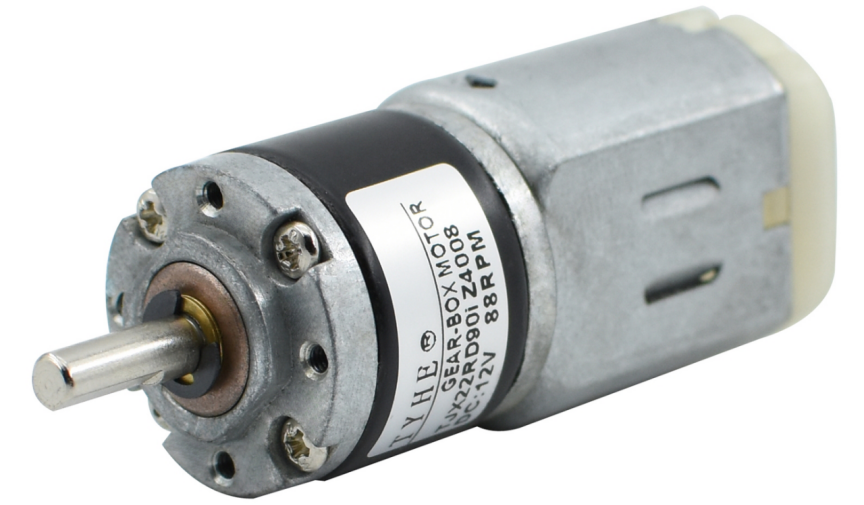

Imāgō mōtoris imago actualis motoris
Caracteristici motoris caracteres motoris
Material Domus materies faciei installationis															Lega di zinco ligamen zincinum
Materies catenae rotulae materies rotae dentatae															Metallurgia pulveris metallurgia in pulvere
Recessus retro intervalum dentis rotae															≤2°
Fulcra in arbores egressus fulcra in arbores egressus															Oil bearing cum oleo fibrae
Velocitas maxima input recommendata velocitas input maxima suggestenda															≤15000RPM
Vis radialis vis radialis															≤1kgf
Axial force vis axialis															≤0.6kgf
Máxima vis pressão no eixo máxima vis pressão suportada pelo eixo															≤5kgf
Cavum radiale interstitium radiale															≤0.05mm
Interstitium axiale interstitium axiale															≤0.3mm
Ambitus Temperatura operandi intervalum temperaturae usus															-20℃-120℃
Commutator structura conversionis															Purificatus
Directio rotationis directio rotationis															CW / CCW
Sonitus sonus															≤40dB
Data Technica Motoris DC parametri motoris directi currentis
Valores ad 25-30 ℃ numeri mensurati sub temperaturae camerae
Formam typus	Voltage aestimatum （V ） tensio nominalis	Sine Onere parametri sine onere		Ratum parametri nominales					Stall parametri bloccati		*Suggesio: Tabula datasheet in latere sinistro est limitata, quaesita nostra personnel pro magis informationibus parametricis. monitio: Tabula databus in latere sinistro parum habet, conlatus esto ad servitorem curae pro pluribus informatiis parametrorum.
		Celeritas velocitas rotationis	Current currens	Celeritas velocitas rotationis	Current currens	Torques torques	Productio potentia exitus	Eff efficietia	Torques torques	Current currens
		rpm	ma	rpm	A	mN.m	W	%	mN.m	A
RF280	12	6800	30	5440	0.10	1.30	0.74	64.96	3.90	0.60
RF280	24	6800	14	5440	0.05	1.35	0.77	63.87	4.05	0.35
Motor cum Gearbox Data Technica parametri motoris reductorii
Data caambi parametri caambi
Rationis dentium ratio reductionis n : 1			4	4.75	12.3	16	19	43	58	76	90	107	150	204	276	304	375	525	713	1024	2036
Numerus stadium dentium numerus stadium reductionis			1	1	2	2	2	3	3	3	3	3	4	4	4	4	4	5	5	5	5
Longitudo cistae rotarum dentatarum longitudo cistae rotarum (mm)			13.1	13.1	16.7	16.7	16.7	20.3	20.3	20.3	20.3	20.3	23.9	23.9	23.9	23.9	23.9	27.5	27.5	27.5	27.5
Efficientia efficietia (%)			0.85	0.85	0.72	0.72	0.72	0.61	0.61	0.61	0.61	0.61	0.52	0.52	0.52	0.52	0.52	0.44	0.44	0.44	0.44
RF280-12V-6800R
Velocitas sine onere velocitas in vacuo (rpm)			1700.0	1431.6	552.8	425.0	357.9	158.1	117.2	89.5	75.6	63.6	45.3	33.3	24.6	22.4	18.1	13.0	9.5	6.6	3.3
Celeritas Aestimata velocitas nominalis (rpm)			1360.0	1145.3	442.3	340.0	286.3	126.5	93.8	71.6	60.4	50.8	36.3	26.7	19.7	17.9	14.5	10.4	7.6	5.3	2.7
Rated torque momentum nominale (N.M)			0.004	0.005	0.012	0.015	0.018	0.034	0.046	0.061	0.072	0.085	0.102	0.138	0.187	0.206	0.254	0.303	0.411	0.591	1.174
Rated torque momentum nominale (KG.CM)			0.04	0.05	0.11	0.15	0.17	0.34	0.45	0.59	0.70	0.84	1.00	1.36	1.84	2.02	2.49	2.97	4.03	5.79	11.51
Rated torque momentum nominale (LB.IN)			0.05	0.06	0.13	0.17	0.20	0.39	0.52	0.69	0.81	0.96	1.15	1.56	2.11	2.33	2.87	3.42	4.64	6.67	13.26
RF280-24V-6800R
Velocitas sine onere velocitas in vacuo (rpm)			1700.0	1431.6	552.8	425.0	357.9	158.1	117.2	89.5	75.6	63.6	45.3	33.3	24.6	22.4	18.1	13.0	9.5	6.6	3.3
Celeritas Aestimata velocitas nominalis (rpm)			1360.0	1145.3	442.3	340.0	286.3	126.5	93.8	71.6	60.4	50.8	36.3	26.7	19.7	17.9	14.5	10.4	7.6	5.3	2.7
Rated torque momentum nominale (N.M)			0.005	0.005	0.012	0.016	0.019	0.036	0.048	0.063	0.075	0.089	0.106	0.144	0.194	0.214	0.264	0.314	0.427	0.613	1.220
Rated torque momentum nominale (KG.CM)			0.04	0.05	0.12	0.15	0.18	0.35	0.47	0.62	0.73	0.87	1.04	1.41	1.91	2.10	2.59	3.08	4.19	6.01	11.95
Rated torque momentum nominale (LB.IN)			0.05	0.06	0.14	0.18	0.21	0.40	0.54	0.71	0.84	1.00	1.19	1.62	2.20	2.42	2.98	3.55	4.82	6.93	13.77

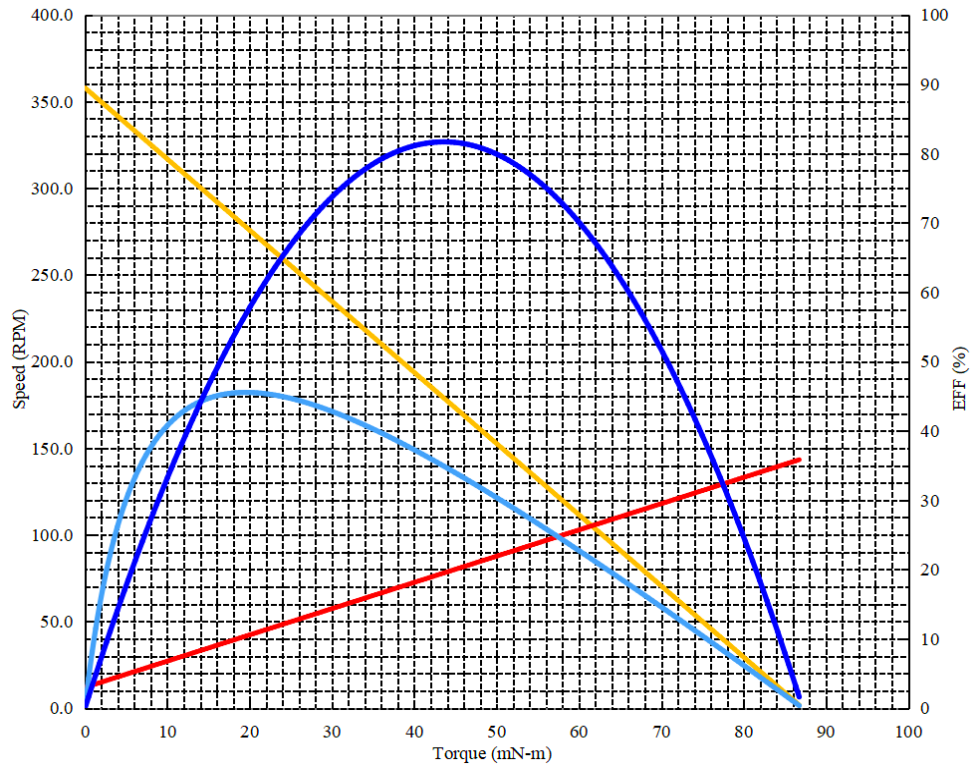

Motor rotulae curvatae exemplum motoris decelerationis curvae
Proiectum nomen operis :			DC Apparatus Motor			Dies data :			2025/3/26			Perfomantia (in temperatura ambientali 25-30 ℃)
Velocitas motoris velocitas rotationis :			6800RPM		Scala integra ambitus mensurae :				100%		Eff	Rapidum testare ad praeventionem incrementi caloris et damni supercargi.
Catena rotatoria gradus :			2						1.0		Watts	Voltage constans carga voltage constantis :					12		Voltae
Rationis dentium ratio reductionis :			19						1.0		Amp.	Directio directio :					CW\/CCW
												Absque onere parametri sine onere
															Celeritas velocitas rotationis :			357.9		Rpm
															Current currens :			0.030		Amperes
												Maximi parametri instantanei parametri maximi instantanei
															Torques momentum :			85.8		mN-m
															Current currens :			0.360		Amperes
												Ad maximam efficientiam parametri puncti maximae efficientiae
															Efficientia efficietia :			45.5		%
															Torques momentum :			19.53		mN-m
															Celeritas velocitas rotationis :			277.7		Rpm
															Current currens :			0.104		Amperes
															Productio potentia egressus :			0.57		Watts
												Ad maximam potentiam egressus maximi output parametri
															Productio potentia egressus :			0.817		Watts
															Torques momentum :			43.6		mN-m
															Celeritas velocitas rotationis :			178.9		Rpm
															Current currens :			0.20		Amperes
Productio Combinatio alia accessoria
Accesoria nomen					Voltage voltage			Resolutio resolutio					Canalis numerus						Animadverte

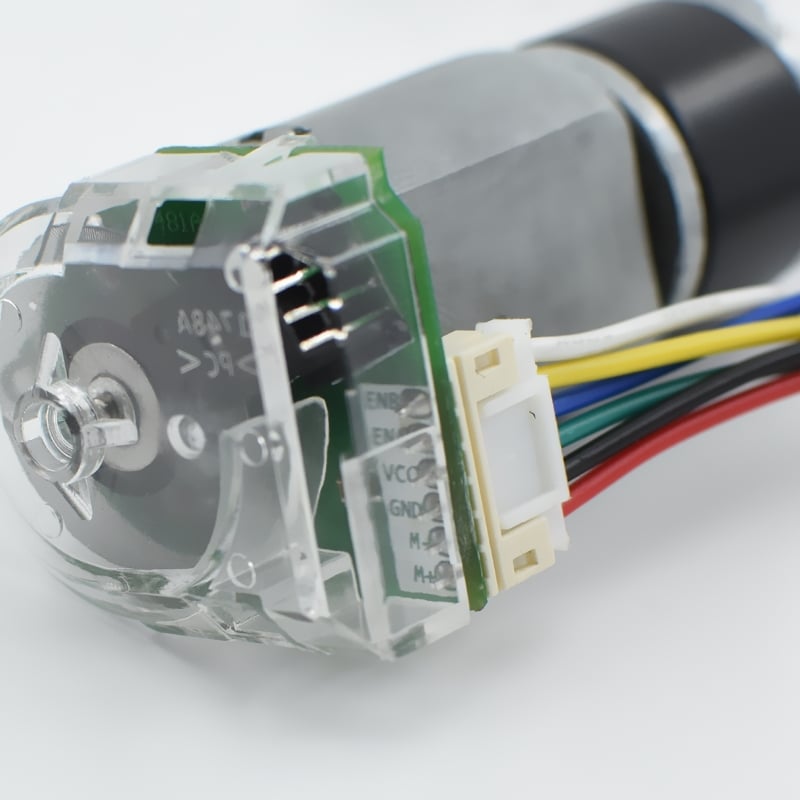

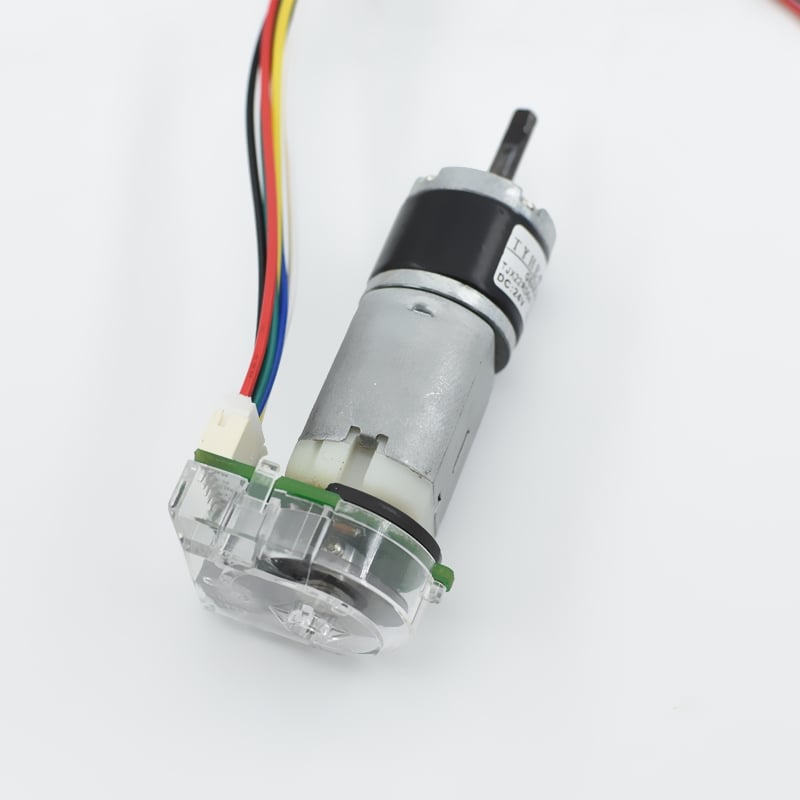

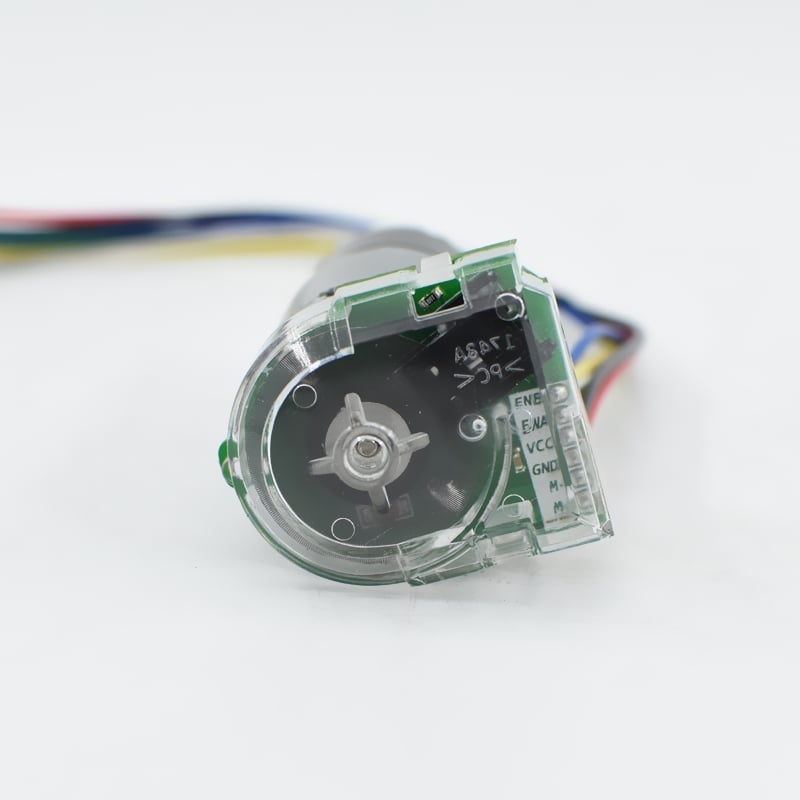

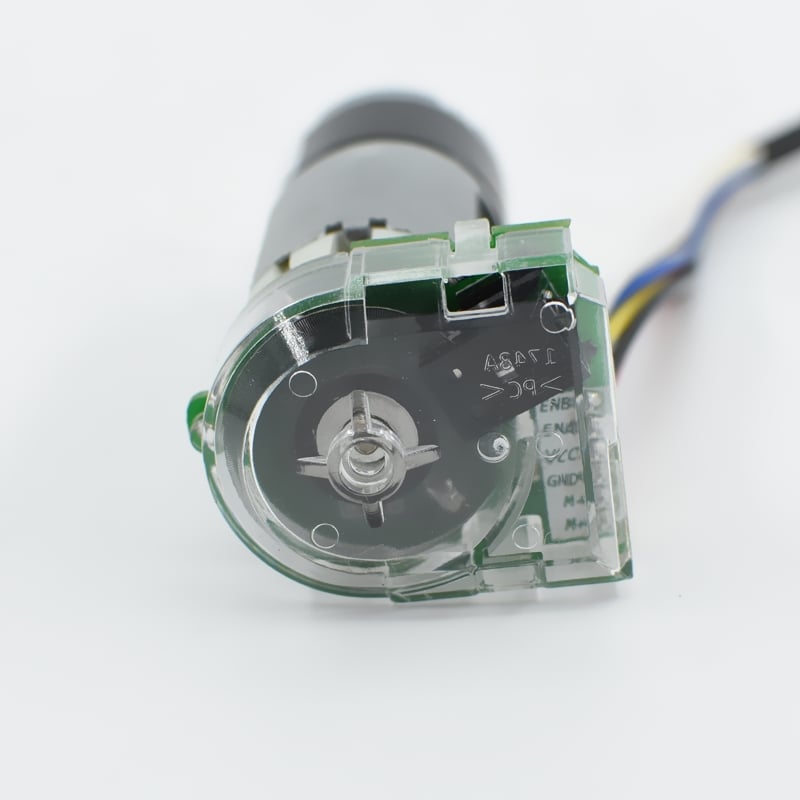

Magnetic Encoder magneticus encoder					3V-12V			3ppr, 6ppr					A&B

Cassette Planetaria Cum Duobus Axis Exeuntibus | TJX22RD | Optio Axis Cavi Transversi

Eigenschaften

1. Cassette planetaria 22 mm cum duobus axis exeuntibus (suffigium RD)

2. Torque exeuntis usque ad 2,2 Nm, rationes reductae 5–200:1

3. Uterque extremus axis exeuntis aditus est ad coniungendos duos onus

4. Axis cavus facultativus ad transmittendum filos

Descriptio

TJX22RD habet duos extremos axis exeuntis qui ex utraque parte cassettis planetarii prodeunt. Haec forma permittit coniungere onus in utroque extremo aut unum extremum ad instrumenta retroactionis uti. Versio RD etiam offert optionem axis cavi (usque ad 3 mm diametrum interiorem) ad transmittendos cables vel fluida. Rationes reductae a 5:1 ad 200:1. Iactus inversus <1,5°.

Latus ambitus:

Diameter 22 mm, duplex axis exeuntis, optio axis cavi (3–5 mm diametrum interiorem), torque usque ad 2,5 Nm.

Usus

- Pinces bibrachiales

- Robotae tracti filis

- Pompe infusionales medicales (axis transversus pro tubulis)

- Mechanismi camerae pan-tilt

Praeponuntur

1. Output duplex: Duos mechanismos simul movet.

2. Optio axis cava: Fila aut tubos per centrum transmittit.

3. Integratio compacta: Extensiones axis externae non requiruntur.
