TJX22RC

Dc Planetaria Apparatus Motor directus motor planetarius																2 Nm		4 Wattia
180 Micro brushed dc motor cum gearbox planetario																Ad combinationem cum
																Hall sensor encoder
																possibilitate conjunctionis cum magnetic encoder
TJX22RC Series

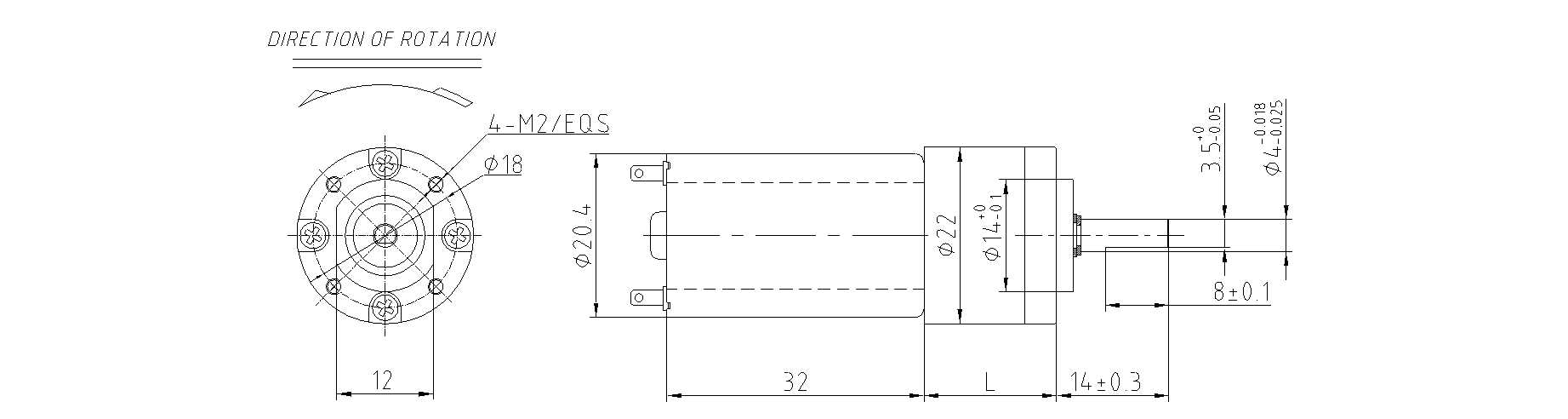

Delineatio Dimensionalis figūra dīmēnsiōnis (mm)

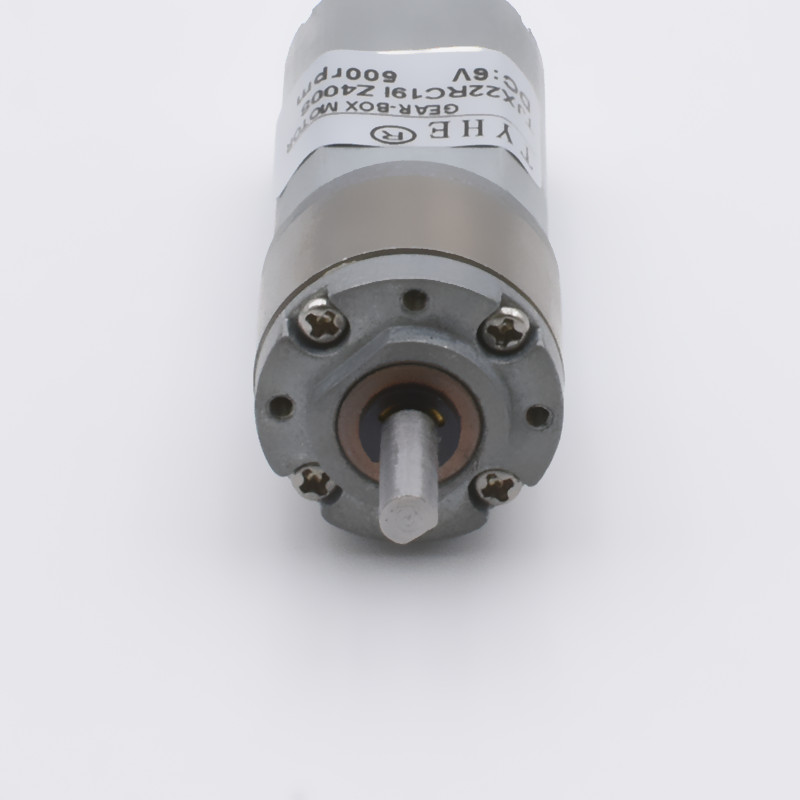

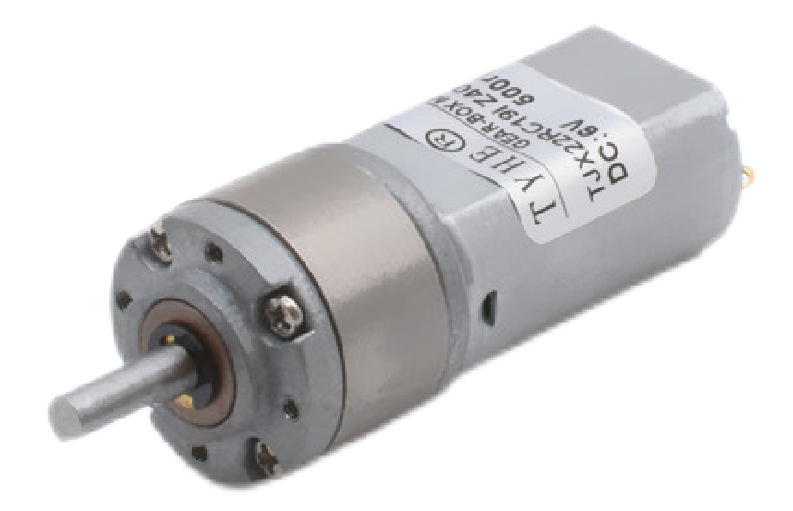

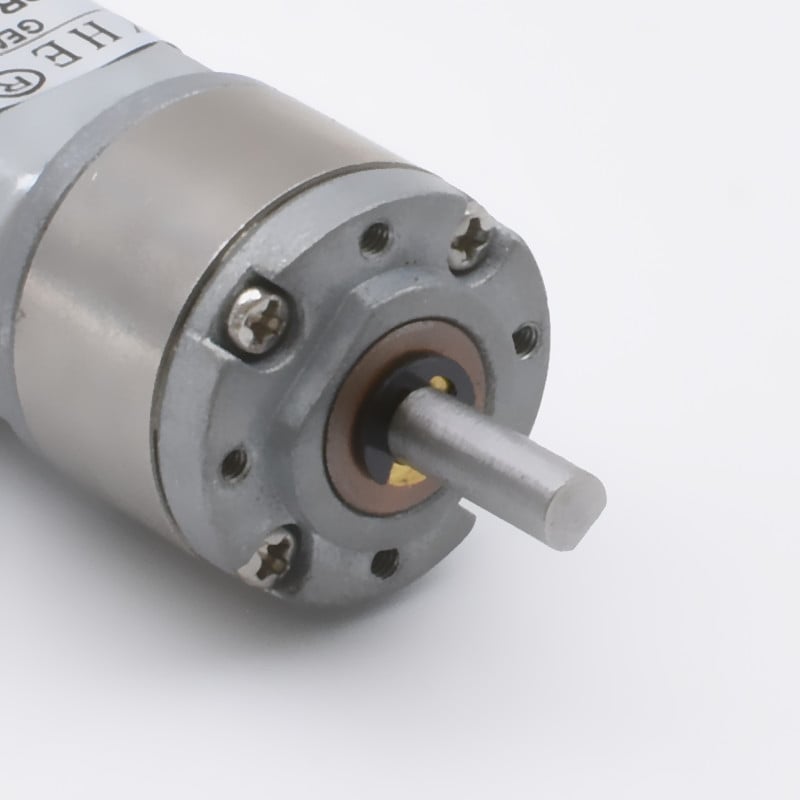

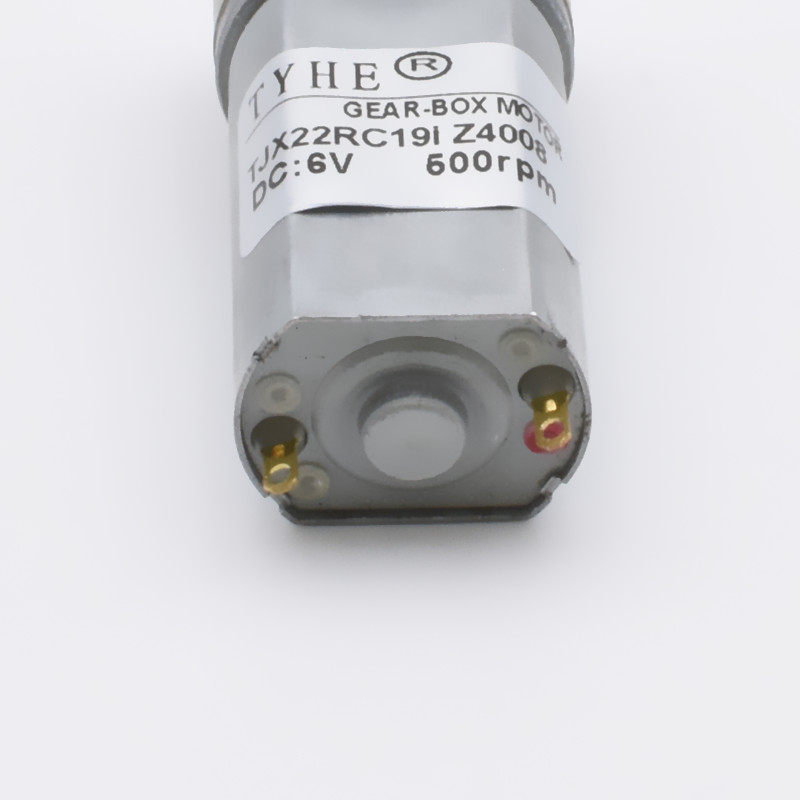

Imāgō mōtoris imago actualis motoris
Caracteristici motoris caracteres motoris
Material Domus materies faciei installationis															Lega di zinco ligamen zincinum
Materies catenae rotulae materies rotae dentatae															Metallurgia pulveris metallurgia in pulvere
Recessus retro intervalum dentis rotae															≤2°
Fulcra in arbores egressus fulcra in arbores egressus															Oil bearing cum oleo fibrae
Velocitas maxima input recommendata velocitas input maxima suggestenda															≤15000RPM
Vis radialis vis radialis															≤1kgf
Axial force vis axialis															≤0.6kgf
Máxima vis pressão no eixo máxima vis pressão suportada pelo eixo															≤5kgf
Cavum radiale interstitium radiale															≤0.05mm
Interstitium axiale interstitium axiale															≤0.3mm
Ambitus Temperatura operandi intervalum temperaturae usus															-20℃-120℃
Commutator structura conversionis															Purificatus
Directio rotationis directio rotationis															CW / CCW
Sonitus sonus															≤40dB
Data Technica Motoris DC parametri motoris directi currentis
Valores ad 25-30 ℃ numeri mensurati sub temperaturae camerae
Formam typus	Voltage aestimatum （V ） tensio nominalis	Sine Onere parametri sine onere		Ratum parametri nominales					Stall parametri bloccati		*Suggesio: Tabula datasheet in latere sinistro est limitata, quaesita nostra personnel pro magis informationibus parametricis. monitio: Tabula databus in latere sinistro parum habet, conlatus esto ad servitorem curae pro pluribus informatiis parametrorum.
		Celeritas velocitas rotationis	Current currens	Celeritas velocitas rotationis	Current currens	Torques torques	Productio potentia exitus	Eff efficietia	Torques torques	Current currens
		rpm	ma	rpm	A	mN.m	W	%	mN.m	A
180	6	10000	195	8000	0.53	2.48	2.08	65.85	7.44	2.80
180	12	10000	103	8000	0.28	2.65	2.22	66.19	7.95	1.50
Motor cum Gearbox Data Technica parametri motoris reductorii
Data caambi parametri caambi
Rationis dentium ratio reductionis n : 1			4	4.75	12.3	16	19	43	58	76	90	107	150	204	276	304	375	525	713	1024	2036
Numerus stadium dentium numerus stadium reductionis			1	1	2	2	2	3	3	3	3	3	4	4	4	4	4	5	5	5	5
Longitudo cistae rotarum dentatarum longitudo cistae rotarum (mm)			13.1	13.1	16.7	16.7	16.7	20.3	20.3	20.3	20.3	20.3	23.9	23.9	23.9	23.9	23.9	27.5	27.5	27.5	27.5
Efficientia efficietia (%)			0.85	0.85	0.72	0.72	0.72	0.61	0.61	0.61	0.61	0.61	0.52	0.52	0.52	0.52	0.52	0.44	0.44	0.44	0.44
180-6V-10000R
Velocitas sine onere velocitas in vacuo (rpm)			2500.0	2105.3	813.0	625.0	526.3	232.6	172.4	131.6	111.1	93.5	66.7	49.0	36.2	32.9	26.7	19.0	14.0	9.8	4.9
Celeritas Aestimata velocitas nominalis (rpm)			2000.0	1684.2	650.4	500.0	421.1	186.0	137.9	105.3	88.9	74.8	53.3	39.2	29.0	26.3	21.3	15.2	11.2	7.8	3.9
Rated torque momentum nominale (N.M)			0.008	0.010	0.022	0.029	0.034	0.065	0.088	0.116	0.137	0.163	0.194	0.264	0.357	0.394	0.485	0.578	0.785	1.127	2.000
Rated torque momentum nominale (KG.CM)			0.08	0.10	0.22	0.28	0.33	0.64	0.87	1.13	1.34	1.60	1.90	2.59	3.50	3.86	4.76	5.66	7.69	11.04	19.60
Rated torque momentum nominale (LB.IN)			0.10	0.11	0.25	0.32	0.38	0.74	1.00	1.31	1.55	1.84	2.19	2.98	4.03	4.44	5.48	6.52	8.86	12.72	22.58
180-12V-10000R
Velocitas sine onere velocitas in vacuo (rpm)			2500.0	2105.3	813.0	625.0	526.3	232.6	172.4	131.6	111.1	93.5	66.7	49.0	36.2	32.9	26.7	19.0	14.0	9.8	4.9
Celeritas Aestimata velocitas nominalis (rpm)			2000.0	1684.2	650.4	500.0	421.1	186.0	137.9	105.3	88.9	74.8	53.3	39.2	29.0	26.3	21.3	15.2	11.2	7.8	3.9
Rated torque momentum nominale (N.M)			0.009	0.011	0.024	0.031	0.036	0.070	0.094	0.124	0.146	0.174	0.207	0.282	0.382	0.421	0.519	0.617	0.838	1.204	2.000
Rated torque momentum nominale (KG.CM)			0.09	0.10	0.23	0.30	0.36	0.69	0.93	1.21	1.44	1.71	2.03	2.77	3.74	4.12	5.08	6.05	8.22	11.80	19.60
Rated torque momentum nominale (LB.IN)			0.10	0.12	0.27	0.35	0.41	0.79	1.07	1.40	1.65	1.97	2.34	3.19	4.31	4.75	5.86	6.97	9.47	13.59	22.58

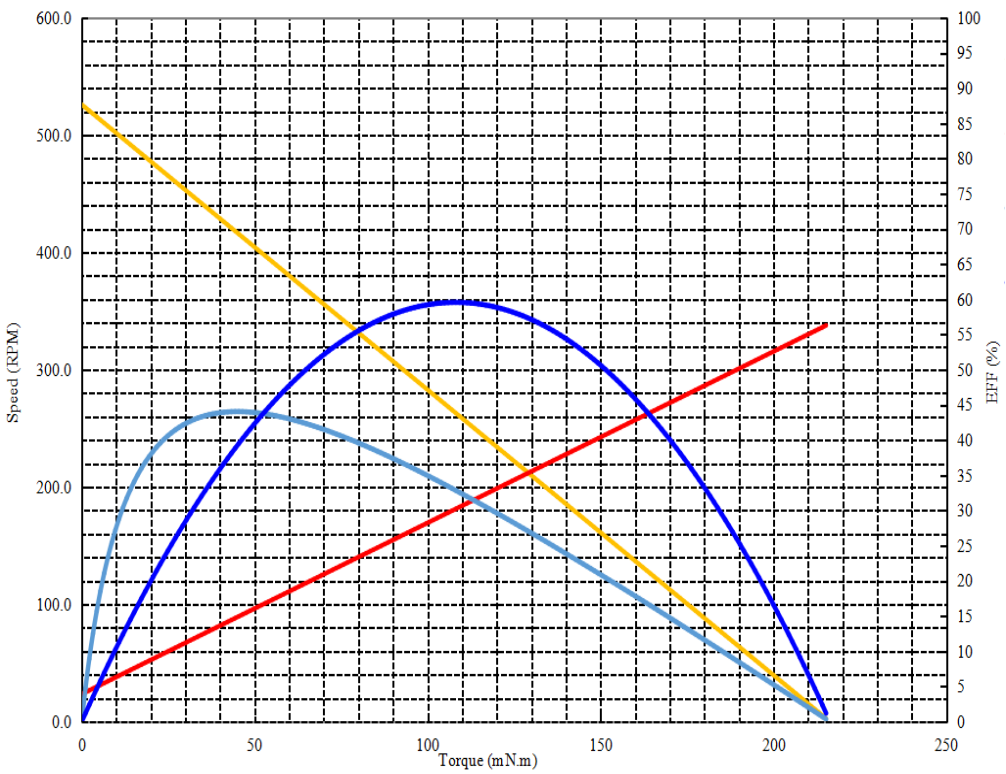

Motor rotulae curvatae exemplum motoris decelerationis curvae
Proiectum nomen operis :			DC Apparatus Motor			Dies data :			2025/3/26			Perfomantia (in temperatura ambientali 25-30 ℃)
Velocitas motoris velocitas rotationis :			10000rpm		Scala integra ambitus mensurae :				100%		Eff	Rapidum testare ad praeventionem incrementi caloris et damni supercargi.
Catena rotatoria gradus :			2						5.0		Watts	Voltage constans carga voltage constantis :					6		Voltae
Rationis dentium ratio reductionis :			19						5.0		Amp.	Directio directio :					CW\/CCW
												Absque onere parametri sine onere
															Celeritas velocitas rotationis :			526.0		Rpm
															Current currens :			0.20		Amperes
												Maximi parametri instantanei parametri maximi instantanei
															Torques momentum :			211.68		mN-m
															Current currens :			2.83		Amperes
												Ad maximam efficientiam parametri puncti maximae efficientiae
															Efficientia efficietia :			44.0		%
															Torques momentum :			45.0		mN-m
															Celeritas velocitas rotationis :			416.6		Rpm
															Current currens :			0.74		Amperes
															Productio potentia egressus :			1.96		Watts
												Ad maximam potentiam egressus maximi output parametri
															Productio potentia egressus :			2.978		Watts
															Torques momentum :			108.1		mN-m
															Celeritas velocitas rotationis :			263.0		Rpm
															Current currens :			1.51		Amperes
Productio Combinatio alia accessoria
Accesoria nomen					Voltage voltage			Resolutio resolutio					Canalis numerus						Animadverte
Magnetic Encoder magneticus encoder					3V-12V			3ppr, 6ppr, 12ppr					A&B

Casseta Planetaria Compacta Anguli Recti | TJX22RC | Exitus ad Angulum Rectum (90°) pro Spatiis Arctis

Eigenschaften

1. Casseta planetaria anguli recti 22 mm, suffīxum RC

2. Momentum torquēns exītūs usque ad 2,0 Nm, rātiōnēs reductiōnis 15–150:1

3. Stādium inītiale rotae conicae + stādium fīnāle planetārium

4. Offsēt exītūs valdē parvus pro īnstitūtiōnibus in angulīs arctīs

Descriptio

TJX22RC combinat stādium inītiale rotae conicae cum stādiō fīnālī planetāriō bīnāriō in cāsū anguli recti 22 mm. Dīspositiō RC permittit trānsmissiōnem potentiāe ad angulum rectum (90°) cum minimō augmentō altitūdinis. Momentum torquēns exītūs attingit 2,0 Nm. Lūsus (backlash) est minor quam 2°. Casseta movērī potest ab omni motore 22 mm (cum scōpīs, sine scōpīs, passuātō). Idōnea est ad applicationēs ubi montāgō in directum impossibilis est.

Lata varietas

Diamēter 22 mm, angulus rectus, rātiōnēs 15–150:1, momentum usque ad 2,0 Nm, efficiēntia 80%.

Usus

- Articulātiōnēs carpii robotī

- Manipulātōrēs endoscōpiōrum medicōrum

- Impulsūs convēyōris compactī

- Mechanismi plicandi speculorum automotive

Praeponuntur

1. Designium angulare parcens spatio: In angulis accommodatur.

2. Ingressus regularis inclinatus: Vibratio et sonus parvi.

3. Alta efficacia: Stadio finale planetario torque servatur.
